Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 | 8K Support

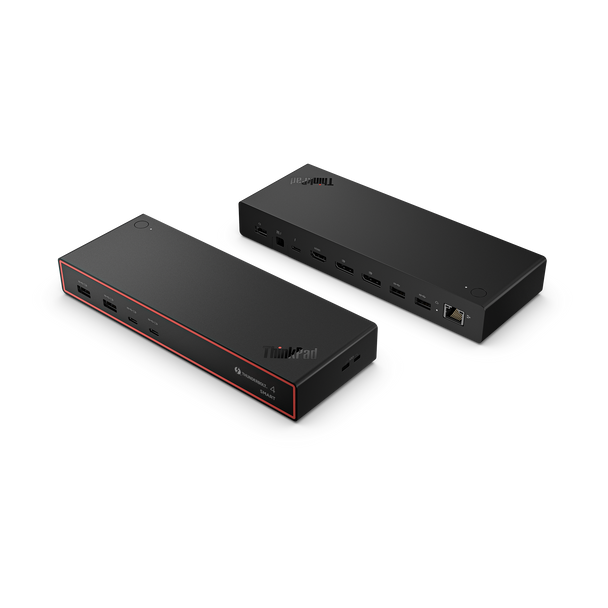

Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 7500

UPC: 195892121268 | Brand: ThinkPad

Professional docking station enabling 8K display support, fast charging, and multiple ports for maximum workspace productivity.

Key Benefits

• High-Resolution Display Support: Drive up to 8K / 60Hz and connect up to 4 external monitors for multitasking.
• Fast Charging: 100W Power Delivery with USB-C PD 3.1 for laptops and devices.
• Versatile Connectivity: Multiple USB-A, USB-C, DP, HDMI, and Thunderbolt ports for peripherals and accessories.
• Secure & Reliable: Physical security via MicroSaver and NanoSaver locks, plus stable Ethernet 2.5Gbps connection.
• Compact & Portable: Eclipse Black finish, weighs 547.5 g, and fits neatly on any workspace.

Technical Specifications

• Weight: 547.5 g (1.21 lbs) | Packed Weight: 1261.5 g (2.78 lbs)
• Dimensions: 220 mm x 80 mm x 30 mm (8.66" x 3.15" x 1.18")
• Packed Dimensions: 237.8 mm x 141 mm x 75.8 mm (9.36" x 5.55" x 2.98")
• Color: Eclipse Black
• Thunderbolt Port: 1 | Charging Port: USB-C
• Power Output: 100W | Input Power: 135W | Power Plug: Yes | Power Button: Yes
• Power Delivery: PD 3.1
• Max Resolution/Refresh Rate: 8K / 60Hz
• Max External Monitors: 4
• Physical Security Feature: MicroSaver Lock, NanoSaver Lock
• Ethernet: 2.5Gbps
• USB Ports:
  • Front: 2 x USB-A 3.2 Gen2 (12W each), 2 x USB-C 3.2 Gen2 (15W each)
  • Back: 2 x USB-A 3.2 Gen2 (5W), 1 x TBT 4 Full Function (15W)
• Video Ports: 2 x DP 1.4, 1 x HDMI 2.1, 1 x TBT 4 Full Function
• Supported OS: Windows, macOS, Linux
• Warranty: CRU, 3 Years
• Environmental: Operating Temperature: 0℃–40℃ | Humidity: 20%–95% (no condensation)
• Package Contents: 1 x Dock, 1 x Power Adaptor, 1 x Power Cord, 3 x Documentation

Additional Information

Warranty & Support

3-year CRU warranty ensures professional support and reliable service.

Compatibility & Setup

Supports Windows, macOS, and Linux with easy plug-and-play setup for multi-monitor and peripheral connectivity.
