Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector – 2200 Lumens, WXGA, HDMI, LAN, White (V11HA22020) – New

Product Overview

The Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector (V11HA22020) merges sleek spotlight aesthetics with dynamic digital projection technology. Engineered for digital signage, experiential retail, museums, showrooms, and event spaces, this spotlight-style laser projector simultaneously illuminates and projects dynamic content onto virtually any surface or object without being bound by a standard display frame. Delivering 2,200 ANSI lumens of equal color and white brightness in native WXGA (1280 x 800) HD resolution, the EV-110 blends seamlessly into high-end architectural environments.

This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes the full manufacturer's warranty.

Key Highlights

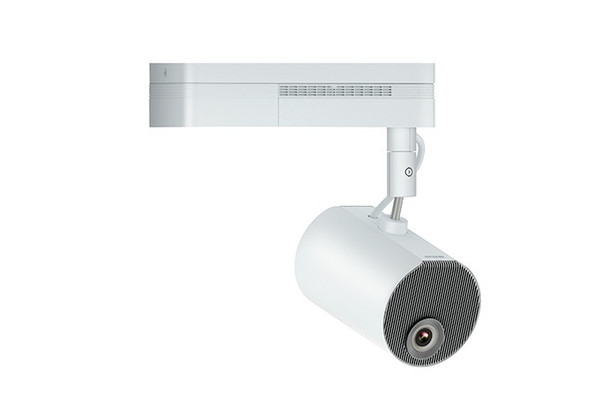

• Convergence of Lighting & Projection: Blends discreetly into ceilings or tracks with a sleek white spotlight design while projecting rich dynamic art, signage, and messaging.
• Maintenance-Free Laser Light Source: Solid-state laser engine offers up to 20,000 hours of operation in Normal Mode (up to 30,000 hours in Extended Mode) with a sealed optical structure.
• 2,200 Lumens Equal Brightness: 3-chip 3LCD technology provides 2,200 lumens of both Color Brightness and White Brightness for vibrant, true-to-life colors.
• Flexible Positioning & Powered Lens: Features powered focus and a 1-2.21 optical zoom alongside broad vertical (±45°) and horizontal (±40°) keystone correction for flexible throw angles.
• Built-In Media Player & Wireless Connectivity: Supports standalone playback via local SD card or USB storage, complete with built-in templates, effects, and app management over Wi-Fi and LAN.
• Epson 3-Year Limited Warranty: Backed by Epson’s official 3-year limited projector warranty or 20,000 hours of operation, whichever comes first.

Product Experience

Designed to transform physical spaces without distracting hardware overhead, the Epson LightScene EV-110 mounts cleanly to ceilings, walls, floors, or compatible lighting tracks. Its spotlight-style chassis easily rotates to direct projection content onto floors, walls, displays, or 3D objects, making it an ideal choice for point-of-sale marketing, gallery installations, and experiential dining.

Content management is straightforward and highly versatile. Users can run dynamic video, promotional graphics, or custom playlists directly using the embedded media player via an SD Card or USB drive. For integrated network setups, the projector supports remote management over wired LAN or wireless networks, compatible with control frameworks like Crestron and Art-Net.

Technical Specifications

• Model / MPN: LightScene EV-110 / V11HA22020
• Display Technology: RGB Liquid Crystal Shutter (3LCD) Laser Projector
• Native Resolution: WXGA (1280 x 800) HD
• Brightness: 2,200 ANSI Lumens (Color Light Output & White Light Output)
• Dynamic Contrast Ratio: Up to 2,500,000:1
• Color Support: Up to 16.7 Million Colors
• Aspect Ratio: 16:10 Native
• Throw Ratio: 1.38 - 2.19:1
• Projection Distance / Image Size: 30" to 150" diagonal
• Zoom & Focus: Powered Optical Zoom (1 - 2.21), Powered Focus
• Keystone Correction: Vertical: ±45 degrees; Horizontal: ±40 degrees

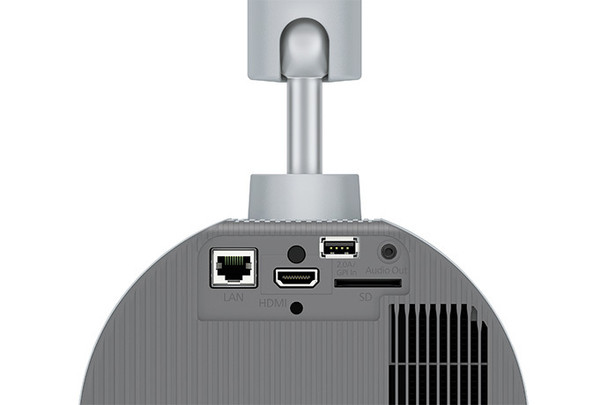

• Connectivity Interfaces: 1 x HDMI, 1 x SD Card Slot, 1 x RJ-45 Ethernet (LAN), 1 x USB Type-A, 1 x USB Mini Type-B, 1 x Stereo Mini Audio Out (3.5mm)
• Wireless / Networking: Integrated Wireless LAN (IEEE 802.11a/b/g/n), Ethernet LAN
• Light Source Life: Up to 20,000 Hours (Normal Mode) / Up to 30,000 Hours (Extended Mode)
• Power Consumption: 150W (Operational) / 2W (Standby)
• Voltage Requirement: AC 100 - 240 V (50/60 Hz)
• Audio Output: Stereo Mini-Jack Out (3.5mm)
• Dimensions (W x D x H): 6.9" x 10.24" x 6.9"
• Weight: 15.2 lbs
• Color Finish: White
• Condition: Brand-New (Factory Sealed)
• Warranty: 3-Year Projector Limited Warranty or 20,000 Hours (whichever comes first)

Ideal For

• Retail Digital Signage: Project dynamic motion graphics, branding, and promotional displays directly onto products, walls, or store displays.
• Museums & Art Galleries: Illuminate artifacts and art exhibits with custom overlay lighting and contextual digital visuals.
• Hospitality & Entertainment Spaces: Create ambient projection effects in restaurants, bars, hotel lobbies, and event venues.
• Commercial Showrooms: Enhance product demonstrations with targeted spotlighting and animated technical specs projected alongside floor samples.

What's Included

• Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector (White)
• Remote Control with 2 x AA Batteries
• Direct Mount Unit
• Power Cable & Power Cable Cover
• 2 x HDMI Cable Clamps
• Quick Setup Guide & Installation Guide

Frequently Asked Questions

Q: Does the LightScene EV-110 require a external media player to display content?
A: No, it features an integrated media player that allows local video, image, and playlist playback directly from an SD Card or USB drive, alongside app control.

Q: How long does the laser light source last before needing replacement?
A: The solid-state laser light source provides up to 20,000 hours of operation in Normal Mode and up to 30,000 hours in Extended Mode with no lamps to replace.

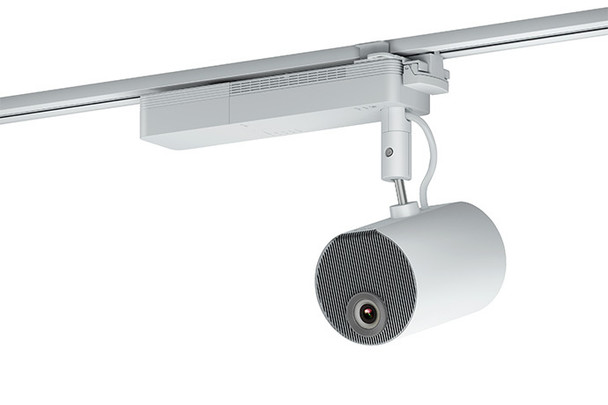

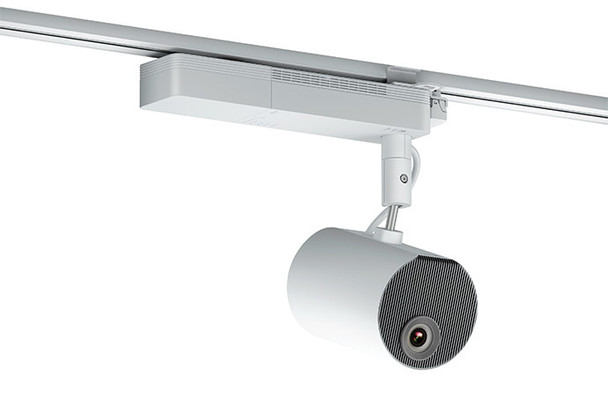

Q: Can this projector be mounted on lighting track systems?
A: Yes, while it includes a direct ceiling/wall mount unit, it is also compatible with optional lighting track mounting accessories for track rail systems.

Q: What is the warranty coverage on this unit?
A: The projector includes Epson's standard 3-year limited warranty or 20,000 hours of use, whichever comes first.

Shop with Confidence

This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes the full manufacturer's warranty. Your purchase is protected by Epson's official 3-year / 20,000-hour limited warranty.
