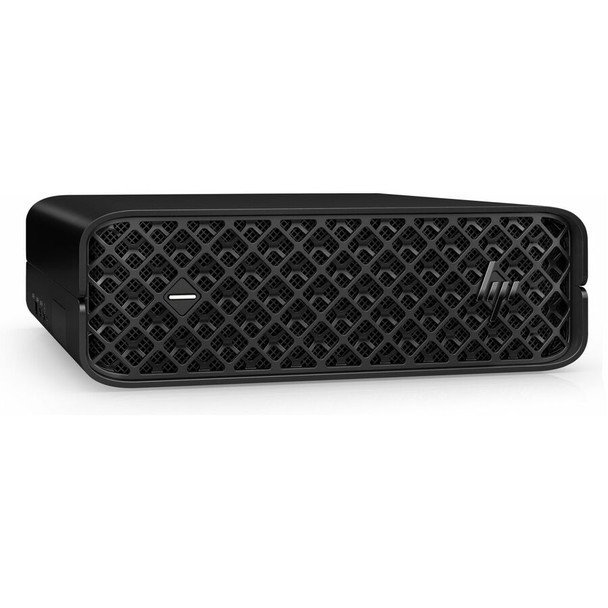

HP Z2 Mini G9 Workstation Desktop – Intel Core i5-14500, 16GB RAM, 512GB SSD, Quadro T400 4GB, Win 11 Pro – New

Product Overview

The HP Z2 Mini G9 Workstation Desktop PC brings professional-grade throughput to compact workspaces, driven by a 14th Gen Intel Core i5-14500 14-core processor and dedicated NVIDIA Quadro T400 4GB graphics. Outfitted with 16GB DDR5 RAM and a fast 512GB PCIe NVMe SSD, this micro workstation powers CAD modeling, multi-display productivity, and technical computing without cluttering your desk.

This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes the full manufacturer's warranty.

Key Highlights

• 14th Gen Intel Core i5-14500 CPU: 14-core, 20-thread processing power featuring clock speeds up to 5.00 GHz Turbo for smooth multi-threaded application performance.
• NVIDIA Quadro T400 4GB VRAM: Dedicated graphics card with 3 mini DisplayPort (3mDP) outputs optimized for entry-level 2D/3D CAD, vector rendering, and multi-monitor setups.
• Next-Gen Wireless Connectivity: Features cutting-edge Intel Wi-Fi 7 BE200 (2x2) wireless, Bluetooth 5.4, and a 10/100/1000 Gigabit Ethernet network port.
• High-Speed DDR5 Memory: Installed with 16GB (1x16GB) 5600MT/s DDR5 SODIMM memory, with expansion support up to 64GB total.
• Versatile Mini Form Factor: Micro desktop footprint measuring just 2.7 inches high and 5.29 lbs for versatile desk mounting or space-saving deployment.
• HP Commercial Warranty Coverage: Backed by official HP warranty coverage and includes 1 year of HP Wolf Pro Security Edition service.

Product Experience

Weighing only 5.29 lbs with a compact 8.3 x 8.6-inch footprint, the Z2 Mini G9 fits seamlessly into tight office spaces, laboratory environments, or behind compatible displays. The internal thermal architecture dynamically regulates airflow to keep the 14-core Intel processor and NVIDIA GPU running quiet and cool under continuous work sessions. The front and rear I/O configuration features 6 total USB ports—including two 20Gbps SuperSpeed USB Type-C connections—for high-speed data transfers with external drives and docking stations.

Flexible networking capabilities give you the freedom to connect via high-speed Intel Wi-Fi 7 wireless or reliable Gigabit wired Ethernet. Pre-loaded with Windows 11 Pro 64-Bit and bundled with HP Wolf Pro Security Edition service, the system delivers business-ready endpoint defense and smooth network management out of the box.

Technical Specifications

• Processor: Intel Core i5-14500 (14th Gen, 14 Cores [6 P-Cores + 8 E-Cores], 20 Threads, 24MB L3 Cache, 1.90 GHz Base, up to 5.00 GHz Max Turbo)
• Graphics: NVIDIA Quadro T400 (4GB GDDR6 Dedicated Memory, 3 x mini DisplayPort)
• RAM: 16GB (1 x 16GB) 5600MT/s DDR5 SODIMM Non-ECC (Expandable up to 64GB)
• Storage: 512GB M.2 PCIe 4.0 x4 TLC NVMe 2280 SSD
• Form Factor: Mini PC / Micro Workstation Desktop
• Operating System: Windows 11 Pro 64-Bit (English)
• Video Display Outputs: 3 x mini DisplayPort (mDP via NVIDIA GPU), 2 x Standard DisplayPort (Onboard)
• Networking: Intel Wi-Fi 7 BE200 (2x2) Wireless LAN, Bluetooth 5.4, 10/100/1000 Gigabit Ethernet (RJ-45)
• I/O Ports: 6 Total USB Ports (includes 2 x SuperSpeed USB Type-C 20Gbps Signaling Rate), 1 x RJ-45 Ethernet
• Audio: Internal Mono Speaker
• Optical Drive: None
• Input Devices: HP 320K Wired USB English Keyboard, HP 320M Wired USB Mouse
• Security Features: HP Wolf Pro Security Edition (1-Year Service)
• Power Supply: 280W External Smart PFC AC Adapter (with Power Cord)
• Dimensions & Weight: 2.7" H x 8.3" W x 8.6" D; Approx. 5.29 lbs
• Finish: Black
• Condition: Brand-New (Factory Sealed)
• Warranty: HP Commercial Limited Warranty Support

Ideal For

• 2D & 3D Drafting: Dedicated NVIDIA Quadro T400 GPU offers reliable driver stability and hardware acceleration for AutoCAD, MicroStation, and SketchUp.
• Multi-Monitor Workstations: Multiple mini DisplayPort and onboard DisplayPort connections allow effortless multi-screen financial and engineering setups.
• Space-Constrained Offices: Ultra-small mini PC footprint frees up valuable desk space and easily mounts under desks or on monitor arms.
• High-Speed Wireless Networks: Built-in Wi-Fi 7 BE200 and Bluetooth 5.4 deliver fast, low-latency wireless communication.

What's Included

• HP Z2 Mini G9 Workstation Desktop PC
• HP 320K Wired USB Keyboard
• HP Wired 320M Mouse
• 280W External AC Power Adapter and Power Cord
• HP Wolf Pro Security Edition 1-Year Service Subscription

Frequently Asked Questions

Q: Does the HP Z2 Mini G9 workstation include Wi-Fi and Bluetooth?
A: Yes, this mini desktop is equipped with high-speed Intel Wi-Fi 7 BE200 wireless LAN and Bluetooth 5.4, in addition to a standard 10/100/1000 RJ-45 Gigabit Ethernet port.

Q: What video display outputs are available on this mini workstation?
A: This system features 3 mini DisplayPort (3mDP) outputs via the NVIDIA Quadro T400 graphics card and 2 onboard standard DisplayPort connections.

Q: Can the RAM memory be upgraded on this model?
A: Yes, the desktop includes 16GB (1x16GB) DDR5 RAM pre-installed and supports memory expansion up to 64GB across its SODIMM slots.

Q: Does this desktop include a monitor?
A: No, a monitor is not included. External displays connect directly to the mini DisplayPort or standard DisplayPort outputs.

Shop with Confidence

This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes the full manufacturer's warranty. Your purchase is backed by official HP warranty support along with 1 year of included HP Wolf Pro Security Edition endpoint defense.
