Lenovo ThinkCentre M75s Gen 5 SFF Desktop – AMD Ryzen 5 PRO 8500G, 16GB RAM, 512GB SSD, Slim DVD-RW, Win 11 Pro – New

Product Overview

The Lenovo ThinkCentre M75s Gen 5 SFF Desktop (Model 12TA000PUS) is a secure, commercial-grade small form factor PC engineered for enterprise management, business multitasking, and reliable office deployment. Powered by a 6-core AMD Ryzen 5 PRO 8500G Processor (3.50GHz base, up to 5.00GHz Max Turbo) on the AMD PRO665 Chipset with enterprise DASH manageability, this desktop delivers fast, reliable computing for modern office environments.

Housed in a compact 8.2-liter Small Form Factor (SFF) chassis, it comes configured with high-speed 16GB DDR5 RAM, a rapid 512GB PCIe 4.0 NVMe Opal 2.0 SSD, integrated AMD Radeon 740M Graphics with triple monitor output capability (dual DisplayPort 1.4a and HDMI 2.1), a built-in Slim DVD±RW Optical Drive, Wi-Fi 6, Gigabit Ethernet, an included keyboard and mouse, and Windows 11 Pro.

Key Highlights

• AMD Ryzen 5 PRO 8500G 6-Core Performance: 6 physical cores and 12 threads with 16MB L3 Cache reaching clock speeds up to 5.00GHz Max Turbo on the AMD PRO665 enterprise platform with DASH manageability.
• 8.2L Small Form Factor (SFF) Enclosure: Compact 3.6" x 11.7" x 13.4" desktop footprint incorporating low-profile PCIe expansion slots and support for up to 3 storage drives.
• 16GB DDR5 RAM & 512GB Gen4 Opal SSD: High-bandwidth DDR5-5200 RAM (expandable to 64GB) paired with a self-encrypting 512GB M.2 PCIe 4.0 x4 NVMe Opal 2.0 solid-state drive.
• Triple Display Outputs & Slim Optical Drive: Features 2 x DisplayPort 1.4a, 1 x HDMI 2.1 TMDS, integrated AMD Radeon 740M graphics, and an integrated Slim DVD±RW optical drive.
• Front USB-C Charging & Wi-Fi 6 Wireless: Equipped with a front panel USB Type-C 5Gbps port (with 15W charging), 8 x USB Type-A ports, Realtek Wi-Fi 6 (802.11ax), Bluetooth 5.3, and Gigabit Ethernet.
• Military-Grade Security & 3-Year Onsite Warranty: Built with a discrete TPM 2.0 chip, Pluton security processor, MIL-STD-810H military-grade durability certification, and a 3-Year Lenovo Onsite Warranty.

Product Experience

Engineered for enterprise fleets and small business environments, the Lenovo ThinkCentre M75s Gen 5 SFF provides continuous desktop performance in a space-conscious 8.2-liter frame. Its black commercial cabinet sits neatly in vertical or horizontal orientations, maintaining optimal internal cooling and low-noise operation during intensive multitasking.

The AMD Ryzen 5 PRO processor with DASH manageability simplifies remote IT administration, while the discrete TPM 2.0 chip and Microsoft Pluton security processor safeguard sensitive corporate data against physical and firmware-level threats. Featuring dual DisplayPort 1.4a outputs and an HDMI 2.1 port, the system drives multi-monitor productivity setups natively, while the front USB-C 15W charging port provides fast power delivery for smartphones and peripheral devices.

Technical Specifications

• Processor: AMD Ryzen 5 PRO 8500G (6 Cores, 12 Threads, 3.50GHz Base Clock, Max Turbo up to 5.00GHz, 6MB L2 Cache, 16MB L3 Cache)
• Chipset & Systems Management: AMD PRO665 Chipset with DASH Systems Management
• Graphics: Integrated AMD Radeon 740M Graphics
• RAM: 16GB DDR5 5200MHz RAM (1 x 16GB UDIMM; 2 Slots Total, Up to 64GB Maximum Supported)
• Storage: 512GB M.2 2280 PCIe 4.0 x4 NVMe Opal 2.0 Solid State Drive (SSD); Max Storage Support up to 3 Drives (1 x 3.5" HDD + 2 x M.2 SSD)
• Optical Drive: Slim DVD±RW Optical Drive
• Expansion Slots: 1 x PCIe 3.0 x16 (Low-Profile), 1 x PCIe 3.0 x1 (Low-Profile), 3 x M.2 Slots (1 for WLAN, 2 for SSDs)
• Operating System: Microsoft Windows 11 Professional (64-bit, English)
• Security Features: Discrete TPM 2.0 (TCG Certified, FIPS 140-2 Certified), Microsoft Pluton Security Processor, Kensington Security Slot, Padlock Loop
• Wireless & Networking: Realtek Wi-Fi 6 RTL8852BE (802.11ax 2x2), Bluetooth 5.3, Integrated 100/1000M Gigabit Ethernet (RJ-45)
• Video Display Outputs: 2 x DisplayPort 1.4a (HBR2, DSC), 1 x HDMI 2.1 TMDS

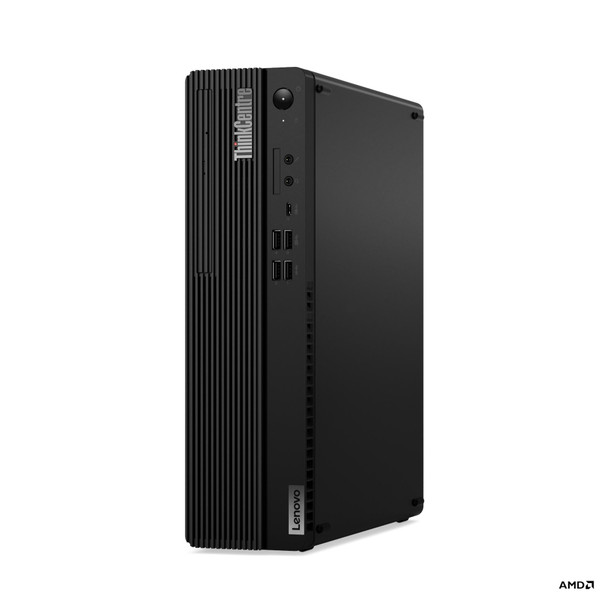

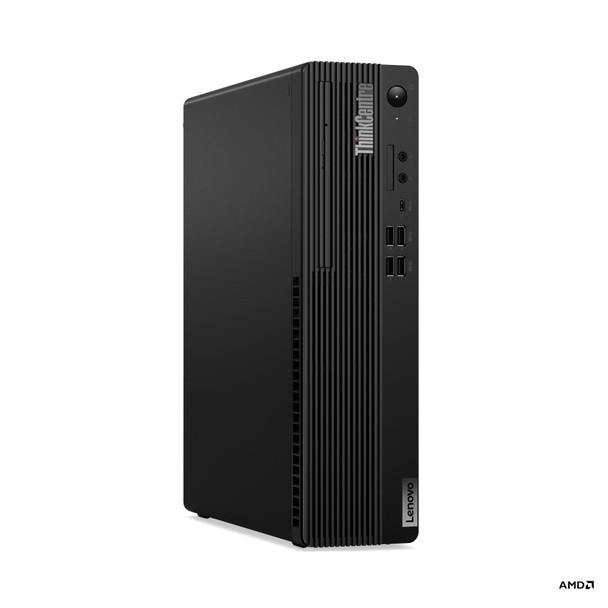

• Front I/O Ports: 1 x USB-C 5Gbps (with 15W Charging), 4 x USB-A 5Gbps, 1 x Headphone/Microphone Combo Jack (3.5mm), 1 x Dedicated Microphone Jack (3.5mm)

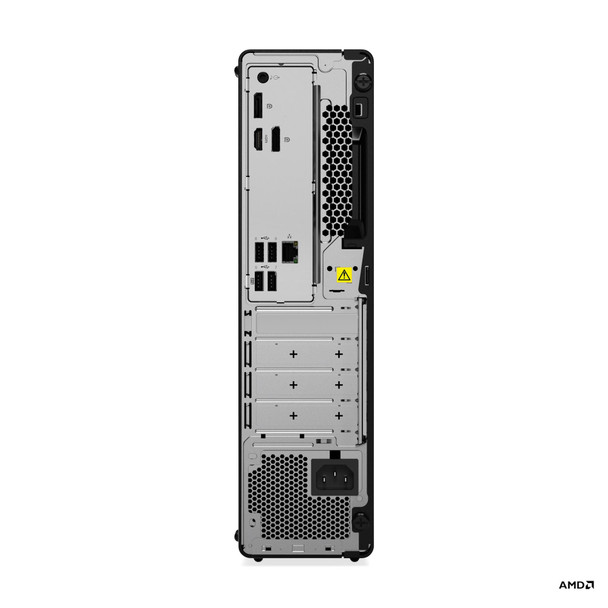

• Rear I/O Ports: 4 x USB-A Hi-Speed USB 2.0, 1 x RJ-45 Gigabit Ethernet, 1 x Audio Line-Out (3.5mm)
• Audio & Power: High Definition Realtek ALC623-CG Codec Audio with 1W Internal Speaker; 260W Internal Power Supply (90% Efficiency)
• Included Peripherals: USB Traditional Keyboard (Black, English), USB Calliope Optical Mouse (Black)
• Dimensions & Weight: 92.5 mm (3.6") W x 297.7 mm (11.7") D x 339.5 mm (13.4") H; Approx. 4.6 kg (10.1 lbs); Black Enclosure
• Durability & Environmental Certifications: MIL-STD-810H Military Test Passed, ENERGY STAR 8.0, EPEAT Gold Registered, TCO Certified 9.0, RoHS Compliant
• Condition: This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes the full manufacturer's warranty.
• Warranty: 3-Year Lenovo Onsite Manufacturer Warranty

Ideal For

• Corporate & Enterprise IT Deployments: Roll out secure, manageable SFF desktops featuring DASH remote management and Windows 11 Pro.
• Multi-Monitor Workstations: Power up to 3 independent high-resolution office monitors natively using dual DisplayPort 1.4a and HDMI 2.1 outputs.
• Legacy Media Access: Read and write optical discs using the internal Slim DVD±RW drive without relying on external USB peripherals.
• Expandable Office Workstations: Add extra M.2 NVMe SSDs, a 3.5" hard drive, or low-profile expansion cards as system demands grow.

What's Included

• Lenovo ThinkCentre M75s Gen 5 SFF Desktop
• Lenovo USB Traditional Keyboard
• Lenovo USB Calliope Mouse
• Internal 260W Power Supply & Power Cord
• Original Lenovo Commercial Packaging

Frequently Asked Questions

Q: What video display outputs are included on the rear panel of this ThinkCentre desktop?
A: It features 3 native display outputs: 2 x DisplayPort 1.4a outputs and 1 x HDMI 2.1 TMDS port, supporting up to 3 independent external displays.

Q: Does this desktop include an internal optical DVD drive?
A: Yes, it comes pre-installed with an internal Slim DVD±RW (DVD Rambo) optical drive for reading and writing CDs and DVDs.

Q: What are the processor core and clock speed specs for the AMD Ryzen 5 PRO 8500G?
A: The AMD Ryzen 5 PRO 8500G processor features 6 physical cores, 12 threads, 16MB L3 cache, a 3.50GHz base frequency, and a maximum boost clock speed of up to 5.00GHz Max Turbo.

Q: What condition is this desktop in and what warranty applies?
A: This unit is Brand-New, factory sealed in its original manufacturer packaging, has never been opened or used, and includes a 3-Year Lenovo Onsite Manufacturer Warranty.
