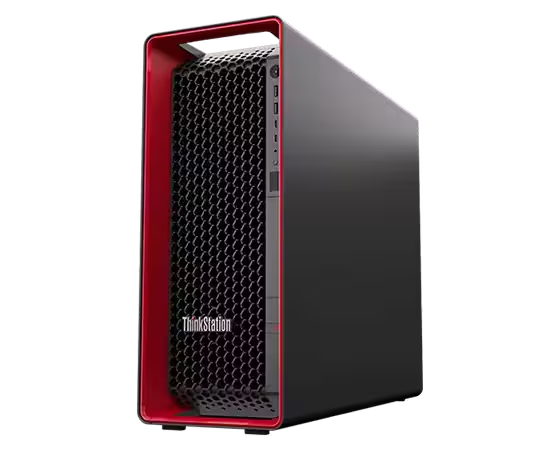

Lenovo ThinkStation P8 - AMD Pro 7945WX, 32GB RAM, 1TB SSD, NVIDIA T400 4GB, Windows 11 Pro - 30HH002QUS

PERFORMANCE

Processor

AMD Ryzen™ Threadripper PRO 7945WX (12C / 24T, 4.7 / 5.3GHz, 12MB L2 / 64MB L3)

Processor Sockets

1x sTR5

Discrete Graphics

1x NVIDIA® T400 4GB

Chipset

AMD WRX90 chipset

Memory

2x 16GB RDIMM DDR5-4800 ECC

Memory Slots

8 DDR5 DIMM slots, 8 channels capable

Max Memory

Up to 1TB (8x 128GB 3DS-RDIMM)

PCIe NVMe Controller

Integrated NVMe® Controller with RAID 0/1/10/5

PCIe NVMe Drive

1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal

SATA Controller

Integrated SATA Controller with RAID 0/1/5

SATA/SAS Drive

None

Storage Support

Up to 7 drives (HDD maximum, 3x 3.5" HDD + 4x M.2 SSD); or 8 drives (M.2 SSD maximum, 8x M.2 SSD); or 6 drives (U.3 SSD maximum, 2x U.3 SSD + 4x M.2 SSD) • 3.5" HDD up to 12TB each • M.2 SSD up to 4TB each • U.3 SSD up to 15.36TB each

Audio Chip

High Definition (HD) Audio, Realtek® ALC897-Q codec

Power Supply

1400W Platinum Fixed

DESIGN

Keyboard

USB Traditional Keyboard, Black, English

Mouse

USB Calliope Mouse, Black

Expansion Slots

Supports 7 PCIe® slots with 6x PCIe 5.0 slots and 1x PCIe 4.0 slot. • Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width • Slot 2: PCIe 5.0 x8, full height, full length, 25W • Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width • Slot 4: PCIe 5.0 x8, full height, full length, 25W • Slot 5: PCIe 5.0 x16, full height, full length, 75W, double-width • Slot 6: PCIe 5.0 x16, full height, full length, 75W • Slot 7: PCIe 4.0 x8, full height, half length, 25W

M.2 Slots

Up to 8x M.2 SSD slots: • 3 via onboard slots, PCIe® 4.0 x4 • 4 via HDD bay, PCIe 4.0 x4 • 1 via front access M.2 bay, PCIe 4.0 x4

Bays

Three internal disk bays plus one front access M.2 bay: • Bay 1 supports one 3.5" HDD, standard, optional support for two M.2 SSD or one U.3 SSD • Bay 2 supports one 3.5" HDD, standard, optional support for two M.2 SSD or one U.3 SSD • Bay 3 supports one 3.5" HDD, optional • Front access M.2 bay supports one M.2 SSD, optional

Dimensions (WxDxH)

175 x 508 x 434.4 mm (6.9 x 20 x 17.1 inches, with feet)

Weight

22.7 kg (50.0 lbs, maximum configuration)

CONNECTIVITY

Onboard Ethernet

Realtek® RTL8111EP + Marvell AQtion AQC-113, 2x RJ-45, GbE + 10GbE

Optional Ethernet

None

WLAN + Bluetooth

AMD Wi-Fi® 6E RZ616, 11ax 2x2 + BT5.3

Card Reader

15-in-1 Card Reader

Front Ports

1x headphone / microphone combo jack (3.5mm)

Optional Front Ports (configured)

• 2x USB-C® 3.2 Gen 2
• 2x USB 3.2 Gen 2

Rear Ports

• 2x USB-A (Hi-Speed USB / USB 2.0)
• 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
• 3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x Ethernet (10GbE RJ-45)
• 1x Ethernet (GbE RJ-45)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)

Optional Rear Ports (configured)

None

SECURITY & PRIVACY

Security Chip

Discrete TPM 2.0, TCG certified

Physical Locks

• Access panel lock kit with common key
• Kensington® Security Slot™, 3 x 7 mm

Cover Lock

Lock Kit with Common Key

Chassis Intrusion Switch

Chassis Intrusion Switch

MANAGEABILITY

System Management

AMD PRO Manageability

Diagnostic

Front Diagnostic Panel with QR code

SERVICE

Base Warranty

3-year, Onsite

Included Upgrade

3Y Premier Support Upgrade from 3Y Onsite

Green Certifications

• ENERGY STAR® 8.0
• EPEAT™ Gold Registered
• TCO Certified 9.0
• GREENGUARD®
• RoHS compliant

SOFTWARE

Operating System

Windows® 11 Pro, English
